| 演色評価数: | 70-95 | 発光効果: | 120ルーメン/W |
|---|---|---|---|
| サポート調光器: | はい | チップ素材: | インガン |
| 色温度: | 3000K 4000K 6000K | 入力電圧: | 35-38V |
| 労働時間: | 10000 | 光束: | 120-140 LM/W |
| 動作温度: | -20〜65 °C | 光学的減衰: | 0.3％ |
| 力: | 10Wから15W | 製品重量: | 0.15 kg |
| 保管温度: | -40-110℃ | 視野角: | 120° |
| 現在: | 280-400ma | ||
| ハイライト: | dimmable LED flood light 3-year warranty,COB LED flood light 120 viewing angle,high power LED flood light white color |
||

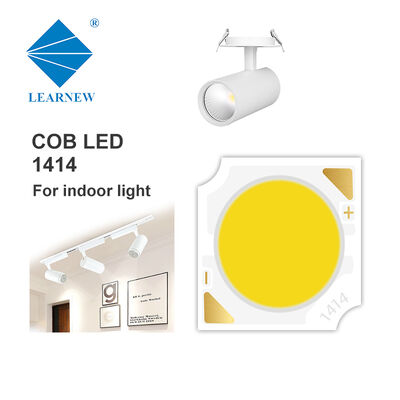

| Product Name | 10W/15W 1414 Flip COB LED Chip for LED Spotlight Light |
| Power Dissipation | 10W-15W |
| CCT (Color Temperature) | 2700-6500K |
| Circuit Configuration | 12s2p |

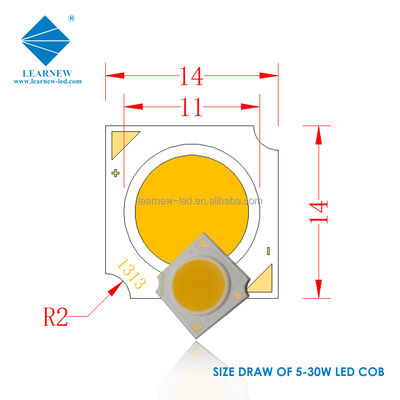

| Whole Size | 14×14mm |
| Emit Size | 11mm |
| Input Current | 280-400mA |
| Luminous Efficacy (LM/W) | 120-140lm/w |
| Input Voltage | 35-38V |
| CRI (Color Rendering Index) | 80 |
| Viewing Angle | 120° |
| Chip Type | F1430 |
| Substrate Material | Super-Aluminum |
| Manufacturer | LearnEW Opto |
