商品の詳細:
|
| Color Temperature(CCT): | 2800K/6500K | Input Voltage(V): | 24-26V |
|---|---|---|---|
| Warranty(Year): | 3-Year | Type: | COB LED |
| Support Dimmer: | Yes | Lighting solutions service: | Lighting and circuitry design, LitePro DLX layout, auto CAD layout |
| Luminous Efficacy(lm/w): | 130 | Working Hours: | 10000 |
| Product Weight（kg）: | 0.01 | Chip Material: | AlGaInP |
| Emitting Color: | white color | Luminous Intensity: | Need testing |
| Luminous Flux(lm): | 3000 | Optical Attenuation(%): | 0.01 |
| Power: | 18W+18W/24W+24W/25W+25W/30W+30W, 18W+18W/24W+24W/25W+25W/30W+30W | Power Dissipation: | 0.01 |
| Viewing Angle(°): | 120 | Color Rendering Index(Ra): | 90 |
| Color Temperature: | 2700K/6500K | Operating Temperature(℃): | -20 - 60 |
| Storage Temperature(℃): | -40 - 80 | LED cob series: | 1919 series |
| Size: | 19*19MM | Lighting area: | R17MM |
| Current: | 450-800mA | Voltage: | 36-38v |
| CRI: | Ra90 | Substrate: | MIRROR ALU SUBSTRATE |
| Application: | LED Downlight | Application2: | LED Spotlights |
| Working Time (hours): | 10000 |

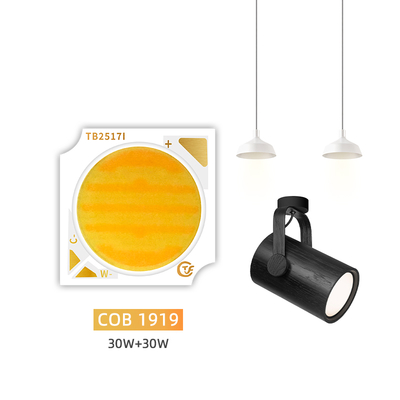

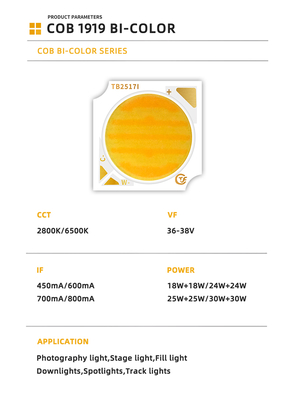

1919 COB Product Parameters
| Model | POWER | CCT | LM/W | IF | VF | WHOLE SIZE | EMIT SIZE | VIEW ANGLE | CRI | SUBSTRATE |
| 1919 SERIES | 18W+18W | 2800K/6500K | 120-130 | 450mA | 36-38V | 19x19MM | 17MM | 120° | 90 | MIRROR ALU SUBSTRATE |
| 25W+25W | 2800K/6500K | 100-110 | 700mA | 36-38V | 19x19MM | 17MM | 120° | 90 | MIRROR ALU SUBSTRATE |
|
The advantages of 1919 dual-color temperature COB (Chip-on-Board) LED technology include:
Dual color temperature 1919 COB Chip FAQ:
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2:All the pictures are real photo? A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our
professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on WhatsApp or add
learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the
goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on WhatsApp
or ask our team.
Q6: How to place an order? A6: You can check the shipping cost and discount
information online, and place order directly on WhatsApp. Or you can contact us for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery
could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET
plastic containers and bottles in all shapes.
