Pure Copper Leadframe 3w Rgb Led Array High Power Red Green Blue Led Chip for Led Downlight and Track Lighting

Pure Copper Leadframe 3w Rgb Led Array High Power Red Green Blue Led Chip for Led Downlight and Track Lighting
Pure Copper Leadframe 3w Rgb Led Array High Power Red Green Blue Led Chip for Led Downlight and Track Lighting Pure Copper Leadframe 3w Rgb Led Array High Power Red Green Blue Led Chip for Led Downlight and Track Lighting Pure Copper Leadframe 3w Rgb Led Array High Power Red Green Blue Led Chip for Led Downlight and Track Lighting Pure Copper Leadframe 3w Rgb Led Array High Power Red Green Blue Led Chip for Led Downlight and Track Lighting Pure Copper Leadframe 3w Rgb Led Array High Power Red Green Blue Led Chip for Led Downlight and Track Lighting Pure Copper Leadframe 3w Rgb Led Array High Power Red Green Blue Led Chip for Led Downlight and Track Lighting

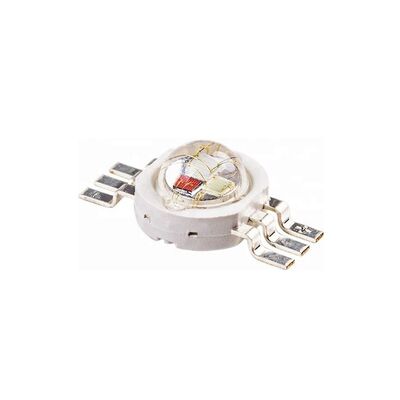

大画像 :  Pure Copper Leadframe 3w Rgb Led Array High Power Red Green Blue Led Chip for Led Downlight and Track Lighting

商品の詳細:
起源の場所: 広東省、中国
ブランド名: LEARNEW
お支払配送条件:
最小注文数量: 1000
連絡先

Pure Copper Leadframe 3w Rgb Led Array High Power Red Green Blue Led Chip for Led Downlight and Track Lighting

説明
チップ素材: インガン 色温度: R=620-630nm G=520-530nm B=460-470nm
入力電圧: R=2.0-2.4V;G=3.0-3.4V;B=3.0-3.4V 寿命: 10000時間
光束: R=40～50lm G=80～90lm B=20～40lm 動作温度: -20-80℃
力: 3W 消費電力: 0.4
保管温度: -40-110℃ 視野角: 120°
外形寸法: 15mm 発光エリア: R8MM
現在: 350mA-700mA 回路: 1 個直列 3 個並列
基板: 純銅
ハイライト:

Pure Copper Leadframe RGB LED chip

,

3W high power LED COB

,

RGB LED array for downlight

Pure Copper Leadframe 3W RGB LED Array
High-power red, green, and blue LED chip designed for LED downlights and track lighting applications.
Pure Copper Leadframe 3w Rgb Led Array High Power Red Green Blue Led Chip for Led Downlight and Track Lighting 0 Pure Copper Leadframe 3w Rgb Led Array High Power Red Green Blue Led Chip for Led Downlight and Track Lighting 1
Product Features
  • SMD packaging with high-power LED type and Standard A class chips
  • Compact 3-in-1/4-in-1 RGB-W-W LED design for optimal structural integration
  • Gold wire bonding and pure copper leadframe for superior thermal management
  • Exclusive chip source with unique phosphor coating technology
  • Minimal spacing between chips ensures excellent color mixing effects
  • Easy reflow soldering process compatibility
  • Ideal for outdoor landscape lighting, stage lighting, and smart lighting applications
Technical Specifications
Product Name Pure Copper Leadframe 3W RGB LED Array High Power Red Green Blue Chip
Power Dissipation 3W
Color Temperature R=620-630nm G=520-530nm B=460-470nm
Forward Current (IF) 350-700mA
Input Voltage R=2.0-2.4V G=3.0-3.4V B=3.0-3.4V
Whole Size 15mm
LES R8mm
View Angle 120°
Substrate Pure Copper
Chips Epistar or Epiled
Manufacturer Learnnew Opto

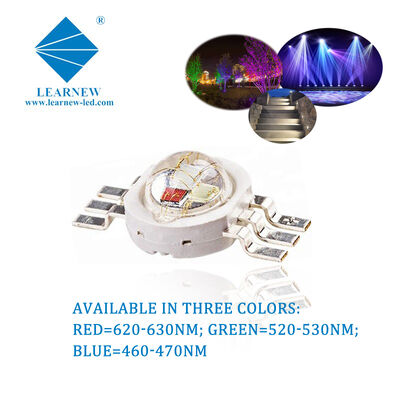

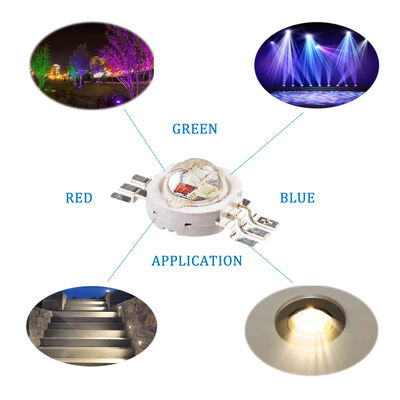

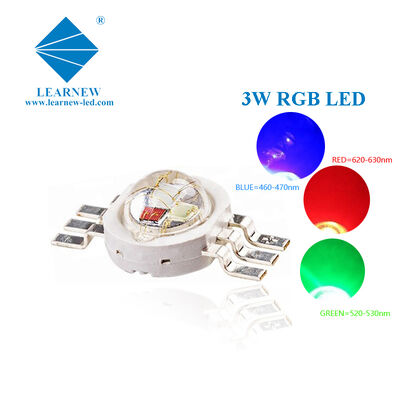

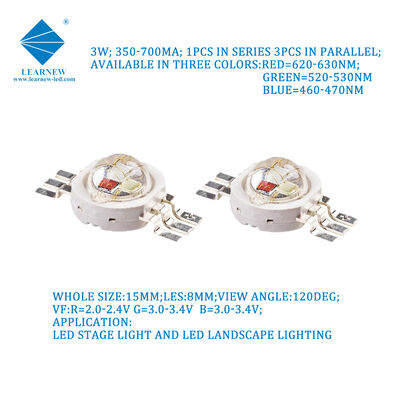

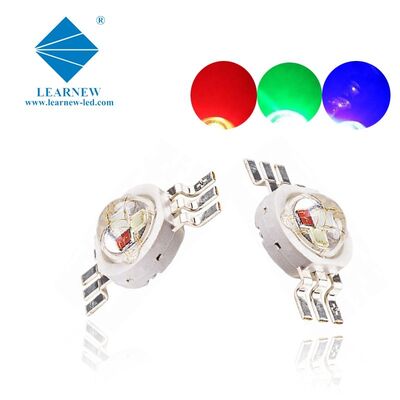

Pure Copper Leadframe 3w Rgb Led Array High Power Red Green Blue Led Chip for Led Downlight and Track Lighting 2 Pure Copper Leadframe 3w Rgb Led Array High Power Red Green Blue Led Chip for Led Downlight and Track Lighting 3 Pure Copper Leadframe 3w Rgb Led Array High Power Red Green Blue Led Chip for Led Downlight and Track Lighting 4
Safety Guidelines
Important Safety Information
  • Do NOT touch LEDs while in operation to prevent burns
  • Avoid looking directly at LEDs to prevent eye damage
  • In hot environments, use cooling fans to maintain optimal operating temperature
We offer free consultation services for all commercial grow project needs. Please send us your engineering drawings to receive customized lighting solutions.
Frequently Asked Questions
Q1: Do you supply OEM, ODM service?
A1: Yes, we absolutely provide OEM and ODM services.
Q2: Are all the pictures real photos?
A2: Yes, all product pictures on this page are 100% real photos taken by us.
Q3: How can I get a quotation?
A3: Please provide your product requirements and quantity. Our professional team will reply promptly (usually within few hours).
Q4: Is there any discount for bulk orders?
A4: Yes, we offer wholesale pricing for bulk orders and customized products.
Q5: Do you support drop shipping and what are the shipping costs?
A5: Yes, we support drop shipping. Provide the receiver's information when ordering. Shipping costs are calculated based on order volume and weight.
Q6: How to place an order?
A6: Send us an inquiry email or contact us through TradeManager. We respond within 24 hours on working days.
Q7: What payment terms are available?
A7: We accept T/T, PayPal, Western Union, and Secure Payment.
Q8: What is the lead time?
A8: Lead time depends on order quantity, typically 3-75 working days. Sample delivery can be as fast as same day.
