High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting

High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting
High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting

大画像 :  High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting

商品の詳細:
起源の場所: 中国広州
ブランド名: Learnew
お支払配送条件:
最小注文数量: 1000
連絡先

High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting

説明
力: 10W 光束: 1200-1500LM
発光効果: 120ルーメン/W 入力電圧: 3.0-3.4V
最大電流: 3000mA 色温度: 2700k～10000k
表示角度: 120° チップ素材: インガン
サイズ: 5.0*5.0mm レンズタイプ: ズームレンズ
動作温度: -20-100℃ 保管温度: -20-80℃
寿命: 10000時間 光学的減衰: 0.01％
基板材料: セラミック
ハイライト:

3000mA Max SMD LED Chip

,

5.0*5.0mm High Power LED

,

120lm/W LED Lamp Bead

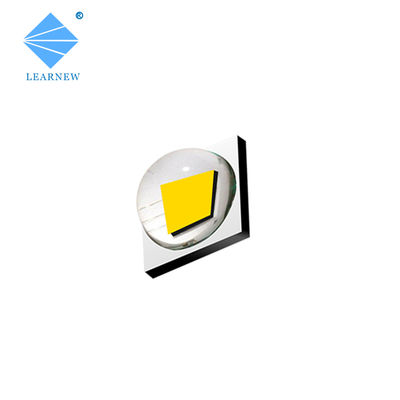

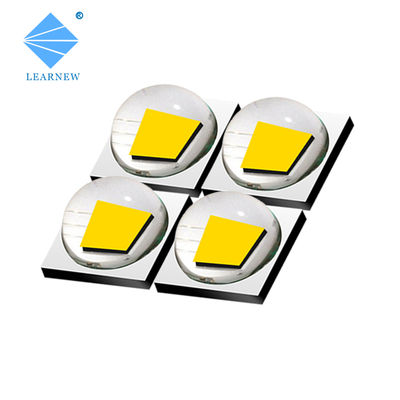

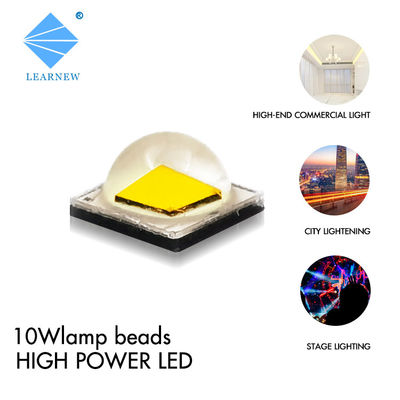

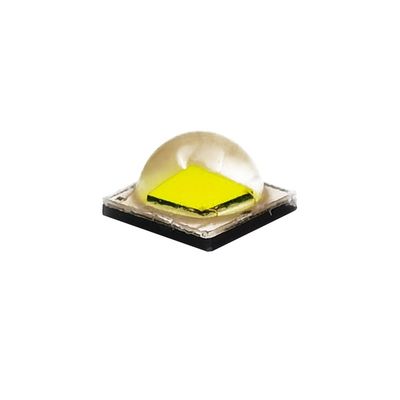

High Power LED 10W SMD 5050 LED Lamp Beads

3000mA Max 5.0×5.0mm 110lm-130lm/W with lens LED chips for city lighting. We accept OEM and ODM service to customize any type of LED chip.

High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting 0 High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting 1
Technical Specifications
Parameter Value
Power 10W
CCT WW=3000K PW=6000-7000K CW=8000-10000K
Luminous Efficiency 1200-1500LM
Substrate Ceramic
Current 3000mA
Size 5.0×5.0MM
Voltage 3.0-3.4V
Circuit 1S1P
LES R2.45MM
Design Advantages
  • Ceramic leadframe
  • High ESD pass
  • Standard A Class chips
  • Excellent cost performance
  • Gold wire bond
  • Easy reflow soldering
Applications
  • Car light
  • High-end commercial light
  • City lighting
  • Stage lighting
High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting 2 High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting 3 High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting 4 High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting 5
Factory Introduction
High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting 6 High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting 7 High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting 8 High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting 9
Product Packaging
High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting 10 High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting 11
Certifications
High Power SMD LED Chip 10W 5050 with 3000mA Max Current 5.0*5.0mm Size and 120lm/W Efficiency for City Lighting 12
Frequently Asked Questions
Q1: Do you supply OEM, ODM service?
A1: Yes, absolutely it can be realized. We focus on OEM & ODM service for more than 7 years.
Q2: Are all the pictures real photos?
A2: Yes, the pictures of all products on this page are 100% real photos taken by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs, including product parameters, application, your contact method and quantity. Our professional team will reply within one hour.
Q4: Is there any discount for bulk orders?
A4: Yes, if you need bulk orders or customized products, we can provide wholesale prices.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. The shipping costs are based on your order's volume and weight.
Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly or contact us for order details.
Q7: What payment terms are available?
A7: T/T, PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For standard samples, delivery could be within 3 days.
